PyTorch

Integrate W&B with PyTorch for experiment tracking, dataset versioning, and logging of metrics, gradients, and models.

Use W&B for machine learning experiment tracking, dataset versioning, and project collaboration.

What this notebook covers

This tutorial walks you through integrating W&B with your PyTorch training code so you can track experiments, log metrics and gradients, and version models. It’s intended for PyTorch users who want to add experiment tracking to an existing pipeline.

# import the library
import wandb

# capture a dictionary of hyperparameters with config
config = {
    "learning_rate": 0.001,
    "epochs": 100,
    "batch_size": 128
}

# start a new experiment
with wandb.init(project="new-sota-model", config=config) as run:

    # set up model and data
    model, dataloader = get_model(), get_data()

    # optional: track gradients
    run.watch(model)

    for batch in dataloader:
    metrics = model.training_step()
    # log metrics inside your training loop to visualize model performance
    run.log(metrics)

    # optional: save model at the end
    model.to_onnx()
    run.save("model.onnx")

Follow along with a video tutorial.

Sections starting with Step are all you need to integrate W&B in an existing pipeline. The rest loads data and defines a model.

Install, import, and log in

Before defining the experiment, set up the environment and authenticate with W&B.

import os
import random

import numpy as np
import torch
import torch.nn as nn
import torchvision
import torchvision.transforms as transforms
from tqdm.auto import tqdm

# Ensure deterministic behavior
torch.backends.cudnn.deterministic = True
random.seed(hash("setting random seeds") % 2**32 - 1)
np.random.seed(hash("improves reproducibility") % 2**32 - 1)
torch.manual_seed(hash("by removing stochasticity") % 2**32 - 1)
torch.cuda.manual_seed_all(hash("so runs are repeatable") % 2**32 - 1)

# Device configuration
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")

# remove slow mirror from list of MNIST mirrors
torchvision.datasets.MNIST.mirrors = [mirror for mirror in torchvision.datasets.MNIST.mirrors
                                      if not mirror.startswith("http://yann.lecun.com")]

Step 0: Install W&B

To get started, you must install the wandb library with pip.

!pip install wandb onnx -Uq

Step 1: Import W&B and log in

To log data to the W&B service, you must log in.

If this is your first time using W&B, sign up for a free account at the link that appears.

import wandb

wandb.login()

Define the experiment and pipeline

With W&B installed and your session authenticated, define the experiment configuration and the training pipeline that will use it.

Track metadata and hyperparameters with wandb.init()

Programmatically, define your experiment first. What are the hyperparameters? What metadata is associated with this run?

A common workflow is to store this information in a config dictionary (or similar object) and then access it as needed.

This example varies only a few hyperparameters and hand-codes the rest. Any part of your model can be part of the config.

The example also includes metadata for the MNIST dataset and a convolutional architecture. If you later work with, say, fully connected architectures on CIFAR in the same project, this metadata helps you separate your runs.

config = dict(
    epochs=5,
    classes=10,
    kernels=[16, 32],
    batch_size=128,
    learning_rate=0.005,
    dataset="MNIST",
    architecture="CNN")

Next, define the overall pipeline, which is typical for model-training:

1. make a model, plus associated data and optimizer.
2. train the model accordingly.
3. test it to see how training went.

The following code implements these functions.

def model_pipeline(hyperparameters):

    # tell wandb to get started
    with wandb.init(project="pytorch-demo", config=hyperparameters) as run:
        # access all HPs through run.config, so logging matches execution.
        config = run.config

        # make the model, data, and optimization problem
        model, train_loader, test_loader, criterion, optimizer = make(config)
        print(model)

        # and use them to train the model
        train(model, train_loader, criterion, optimizer, config)

        # and test its final performance
        test(model, test_loader)

    return model

The only difference here from a standard pipeline is that it all occurs inside the context of wandb.init(). Calling this function sets up a line of communication between your code and W&B servers.

Passing the config dictionary to wandb.init() immediately logs all that information to W&B, so you always know what hyperparameter values you set your experiment to use.

To ensure the values you chose and logged are always the ones used in your model, W&B recommends using the run.config copy of your object. Check the following definition of make to see some examples.

With the pipeline defined, the next sections implement each of its steps in turn: data and model setup, training, and testing.

Side Note: W&B runs its code in separate processes so that any issues on the W&B side don’t crash your code. Once the issue is resolved, you can log the data with wandb sync.

def make(config):
    # Make the data
    train, test = get_data(train=True), get_data(train=False)
    train_loader = make_loader(train, batch_size=config.batch_size)
    test_loader = make_loader(test, batch_size=config.batch_size)

    # Make the model
    model = ConvNet(config.kernels, config.classes).to(device)

    # Make the loss and optimizer
    criterion = nn.CrossEntropyLoss()
    optimizer = torch.optim.Adam(
        model.parameters(), lr=config.learning_rate)

    return model, train_loader, test_loader, criterion, optimizer

Define the data loading and model

Next, specify how the data is loaded and what the model looks like.

This part is important, but it’s no different from what it would be without wandb.

def get_data(slice=5, train=True):
    full_dataset = torchvision.datasets.MNIST(root=".",
                                              train=train,
                                              transform=transforms.ToTensor(),
                                              download=True)
    #  equiv to slicing with [::slice]
    sub_dataset = torch.utils.data.Subset(
      full_dataset, indices=range(0, len(full_dataset), slice))

    return sub_dataset


def make_loader(dataset, batch_size):
    loader = torch.utils.data.DataLoader(dataset=dataset,
                                         batch_size=batch_size,
                                         shuffle=True,
                                         pin_memory=True, num_workers=2)
    return loader

Defining the model doesn’t change with wandb, so this example uses a standard ConvNet architecture. Experiment freely with this code. W&B logs all your results on wandb.ai.

# Conventional and convolutional neural network

class ConvNet(nn.Module):
    def __init__(self, kernels, classes=10):
        super(ConvNet, self).__init__()

        self.layer1 = nn.Sequential(
            nn.Conv2d(1, kernels[0], kernel_size=5, stride=1, padding=2),
            nn.ReLU(),
            nn.MaxPool2d(kernel_size=2, stride=2))
        self.layer2 = nn.Sequential(
            nn.Conv2d(16, kernels[1], kernel_size=5, stride=1, padding=2),
            nn.ReLU(),
            nn.MaxPool2d(kernel_size=2, stride=2))
        self.fc = nn.Linear(7 * 7 * kernels[-1], classes)

    def forward(self, x):
        out = self.layer1(x)
        out = self.layer2(out)
        out = out.reshape(out.size(0), -1)
        out = self.fc(out)
        return out

Define training logic

Moving on in the model_pipeline, it’s time to specify how to train. This is where the W&B integration tracks gradients, parameters, and metrics as training proceeds.

Two wandb functions come into play here: watch and log.

Track gradients with run.watch() and everything else with run.log()

run.watch() logs the gradients and the parameters of your model every log_freq steps of training.

All you need to do is call it before you start training.

The rest of the training code remains the same: iterate over epochs and batches, run forward and backward passes, and apply your optimizer.

def train(model, loader, criterion, optimizer, config):
    # Tell wandb to watch what the model gets up to: gradients, weights, and more.
    run = wandb.init(project="pytorch-demo", config=config)
    run.watch(model, criterion, log="all", log_freq=10)

    # Run training and track with wandb
    total_batches = len(loader) * config.epochs
    example_ct = 0  # number of examples seen
    batch_ct = 0
    for epoch in tqdm(range(config.epochs)):
        for _, (images, labels) in enumerate(loader):

            loss = train_batch(images, labels, model, optimizer, criterion)
            example_ct +=  len(images)
            batch_ct += 1

            # Report metrics every 25th batch
            if ((batch_ct + 1) % 25) == 0:
                train_log(loss, example_ct, epoch)


def train_batch(images, labels, model, optimizer, criterion):
    images, labels = images.to(device), labels.to(device)

    # Forward pass ➡
    outputs = model(images)
    loss = criterion(outputs, labels)

    # Backward pass ⬅
    optimizer.zero_grad()
    loss.backward()

    # Step with optimizer
    optimizer.step()

    return loss

The only difference is in the logging code: where previously you might have reported metrics by printing to the terminal, now you pass the same information to run.log().

run.log() expects a dictionary with strings as keys. These strings identify the objects being logged, which make up the values. You can also optionally log which step of training you’re on.

Side Note: Using the number of examples the model has seen makes for easier comparison across batch sizes, but you can use raw steps or batch count. For longer training runs, it can also make sense to log by epoch.

def train_log(loss, example_ct, epoch):
    with wandb.init(project="pytorch-demo") as run:
        # Log the loss and epoch number
        # This is where we log the metrics to W&B
        run.log({"epoch": epoch, "loss": loss}, step=example_ct)
        print(f"Loss after {str(example_ct).zfill(5)} examples: {loss:.3f}")

Define testing logic

Once the model is done training, test it: run it against some fresh data from production, perhaps, or apply it to some hand-curated examples. Testing also gives you a natural point at which to save the trained model.

Optional: Call run.save()

This is also a good time to save the model’s architecture and final parameters to disk. For broad compatibility, export the model in the Open Neural Network eXchange (ONNX) format.

Passing that filename to run.save() ensures that the model parameters are saved to W&B servers: no more losing track of which .h5 or .pb corresponds to which training runs.

For more advanced wandb features for storing, versioning, and distributing models, check out Artifacts tools.

def test(model, test_loader):
    model.eval()

    with wandb.init(project="pytorch-demo") as run:
        # Run the model on some test examples
        with torch.no_grad():
            correct, total = 0, 0
            for images, labels in test_loader:
                images, labels = images.to(device), labels.to(device)
                outputs = model(images)
                _, predicted = torch.max(outputs.data, 1)
                total += labels.size(0)
                correct += (predicted == labels).sum().item()

            print(f"Accuracy of the model on the {total} " +
                f"test images: {correct / total:%}")

            run.log({"test_accuracy": correct / total})

        # Save the model in the exchangeable ONNX format
        torch.onnx.export(model, images, "model.onnx")
        run.save("model.onnx")

Run training and watch your metrics live on wandb.ai

Now that you’ve defined the whole pipeline and added those few lines of W&B code, you’re ready to run your fully tracked experiment.

W&B reports a few links to you: the documentation, the Project page (which organizes all the runs in a project), and the Run page (where this run’s results are stored).

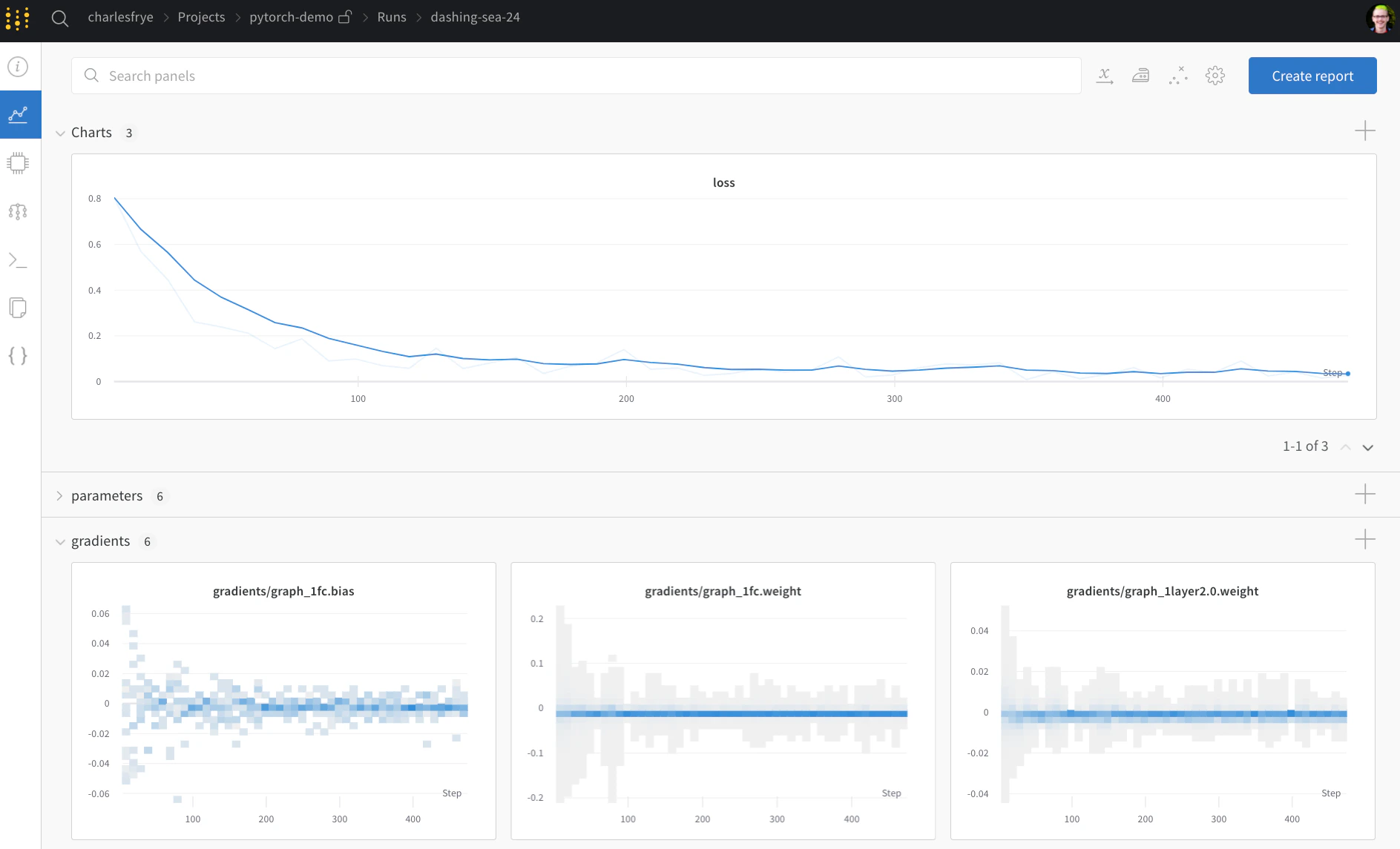

Navigate to the Run page and check out these tabs:

1. Charts, where the model gradients, parameter values, and loss are logged throughout training.
2. System, which contains system metrics including Disk I/O utilization and CPU and GPU metrics.
3. Logs, which has a copy of anything pushed to standard out during training.
4. Files, where, once training is complete, you can click the model.onnx to view your network with the Netron model viewer.

Once the run is finished, when the with wandb.init() block exits, W&B also prints a summary of the results in the cell output.

# Build, train and analyze the model with the pipeline
model = model_pipeline(config)

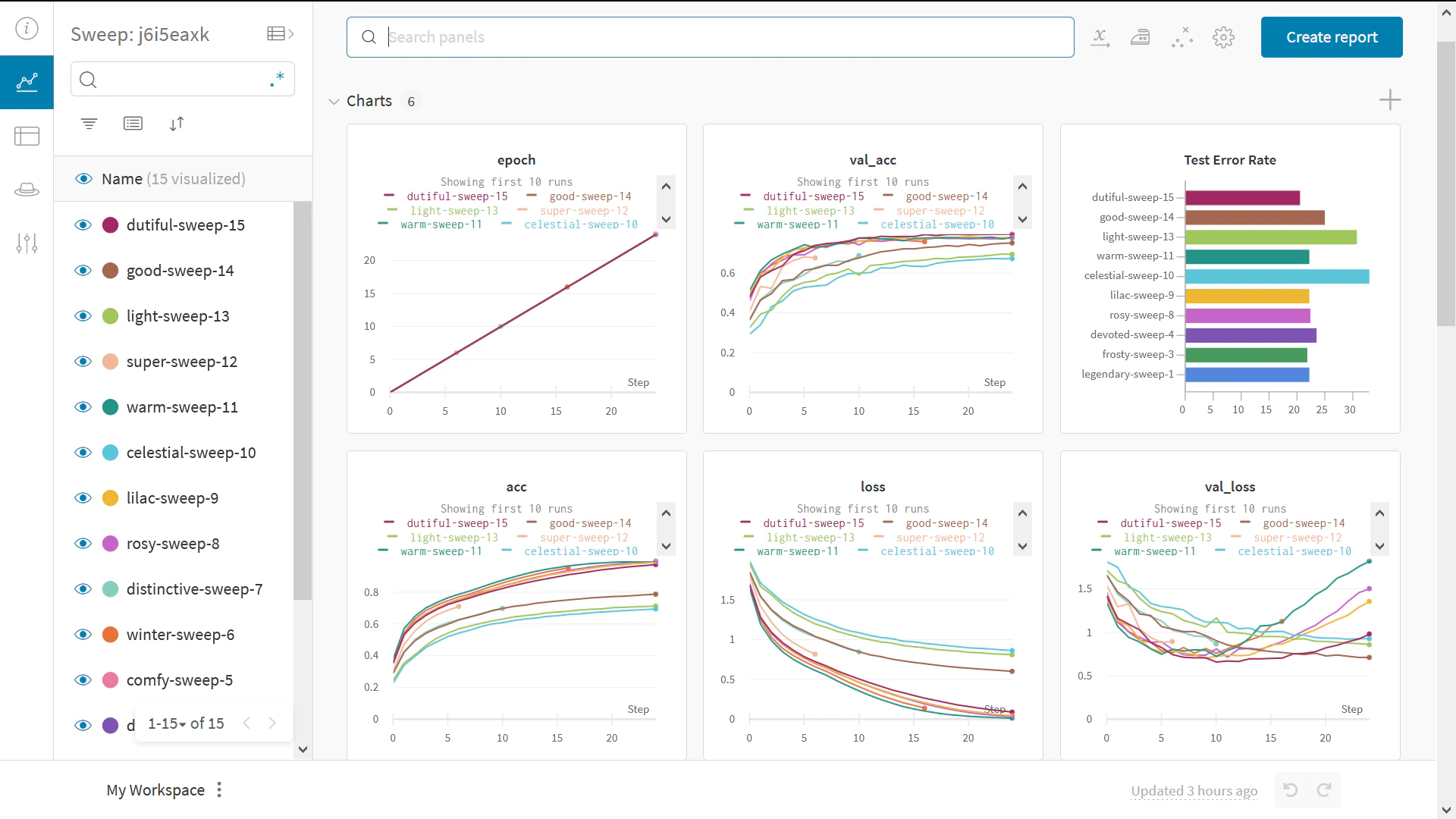

Test hyperparameters with sweeps

This example only looked at a single set of hyperparameters. An important part of most ML workflows is iterating over several hyperparameters.

You can use W&B Sweeps to automate hyperparameter testing and explore the space of possible models and optimization strategies. This lets you scale beyond the preceding single-configuration run.

Check out a Colab notebook demonstrating hyperparameter optimization using W&B Sweeps.

Running a hyperparameter sweep with W&B takes three steps:

1. Define the sweep: Create a dictionary or a YAML file that specifies the parameters to search through, the search strategy, the optimization metric, and more.
2. Initialize the sweep: sweep_id = wandb.sweep(sweep_config).
3. Run the sweep agent: wandb.agent(sweep_id, function=train).

That’s all there is to running a hyperparameter sweep.

Example gallery

Explore examples of projects tracked and visualized with W&B in the Gallery.

Advanced setup

The following options can extend the preceding basic workflow for production, offline, or managed environments:

• Environment variables: Set API keys in environment variables so you can run training on a managed cluster.
• Offline mode: Use dryrun mode to train offline and sync results later.
• On-premises: Install W&B in a private cloud or air-gapped servers in your own infrastructure.
• Sweeps: Set up hyperparameter search quickly with a lightweight tool for tuning.
