Hugging Face Diffusers

Use W&B autolog with Hugging Face Diffusers to track prompts, generated media, configs, and pipeline architecture.

Hugging Face Diffusers is a library of pre-trained diffusion models for generating images, audio, and 3D structures of molecules. The W&B integration adds experiment tracking, media visualization, pipeline architecture tracking, and configuration management to interactive centralized dashboards.

Log experiments in two lines

To log all the prompts, negative prompts, generated media, and configs associated with your experiment, add the following two lines of code:

# import the autolog function
from wandb.integration.diffusers import autolog

# call the autolog before calling the pipeline
autolog(init=dict(project="diffusers_logging"))

Get started

1. Install diffusers, transformers, accelerate, and wandb.

   • Command line:

     pip install --upgrade diffusers transformers accelerate wandb


   • Notebook:

     !pip install --upgrade diffusers transformers accelerate wandb


2. Call autolog() with the init parameter, which accepts a dictionary of parameters required by wandb.init(). autolog() initializes a W&B run and automatically tracks the inputs and outputs from all supported pipeline calls:

   • Each pipeline call is tracked into its own table in the workspace, and the configs associated with the pipeline call are appended to the list of workflows in the configs for that run.
   • The prompts, negative prompts, and generated media are logged in a wandb.Table.
   • All other configs associated with the experiment, including seed and pipeline architecture, are stored in the config section for the run.
   • The generated media for each pipeline call are also logged in media panels in the run.
   Find a list of supported pipeline calls. To request a new feature of this integration or report a bug, open an issue on the W&B GitHub issues page.

Examples

The following examples show autolog in typical diffusion workflows so you can adapt them to your own pipelines.

Autolog example

The following is an end-to-end example of autolog:

Script

import torch
from diffusers import DiffusionPipeline

# import the autolog function
from wandb.integration.diffusers import autolog

# call the autolog before calling the pipeline
autolog(init=dict(project="diffusers_logging"))

# Initialize the diffusion pipeline
pipeline = DiffusionPipeline.from_pretrained(
    "stabilityai/stable-diffusion-2-1", torch_dtype=torch.float16
).to("cuda")

# Define the prompts, negative prompts, and seed.
prompt = ["a photograph of an astronaut riding a horse", "a photograph of a dragon"]
negative_prompt = ["ugly, deformed", "ugly, deformed"]
generator = torch.Generator(device="cpu").manual_seed(10)

# call the pipeline to generate the images
images = pipeline(
    prompt,
    negative_prompt=negative_prompt,
    num_images_per_prompt=2,
    generator=generator,
)

Notebook

import torch
from diffusers import DiffusionPipeline

import wandb

# import the autolog function
from wandb.integration.diffusers import autolog

run = wandb.init()

# call the autolog before calling the pipeline
autolog(init=dict(project="diffusers_logging"))

# Initialize the diffusion pipeline
pipeline = DiffusionPipeline.from_pretrained(
    "stabilityai/stable-diffusion-2-1", torch_dtype=torch.float16
).to("cuda")

# Define the prompts, negative prompts, and seed.
prompt = ["a photograph of an astronaut riding a horse", "a photograph of a dragon"]
negative_prompt = ["ugly, deformed", "ugly, deformed"]
generator = torch.Generator(device="cpu").manual_seed(10)

# call the pipeline to generate the images
images = pipeline(
    prompt,
    negative_prompt=negative_prompt,
    num_images_per_prompt=2,
    generator=generator,
)

# Finish the experiment
run.finish()

The following images show what gets logged to W&B:

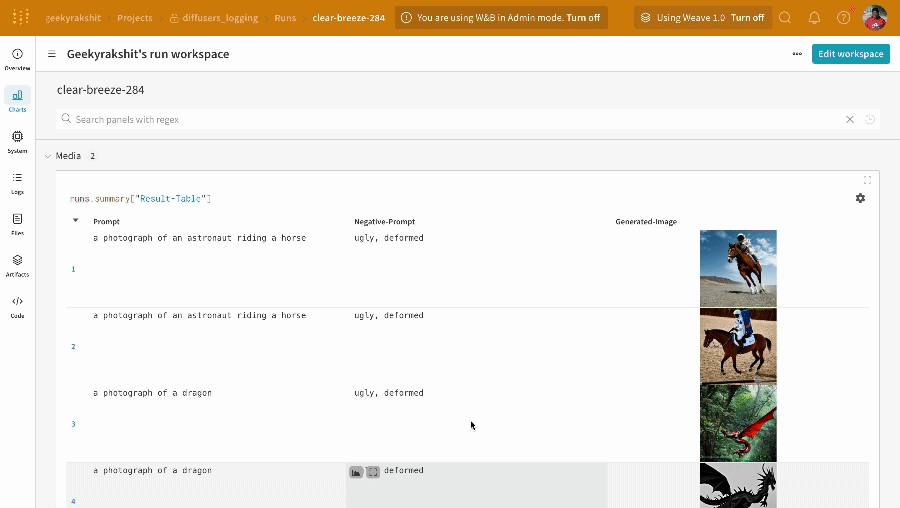

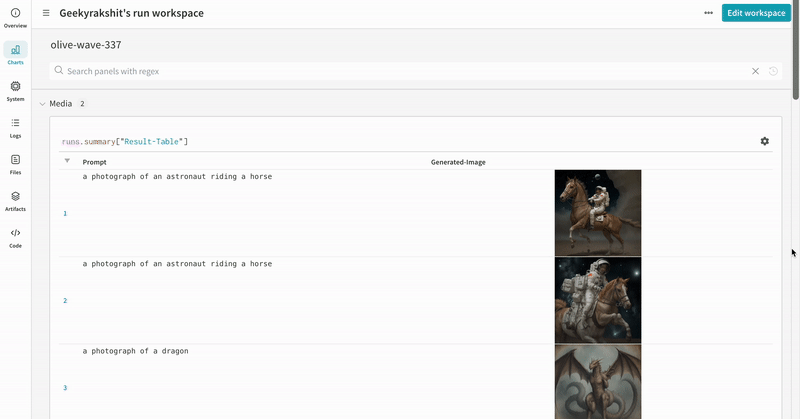

• The results of a single experiment:

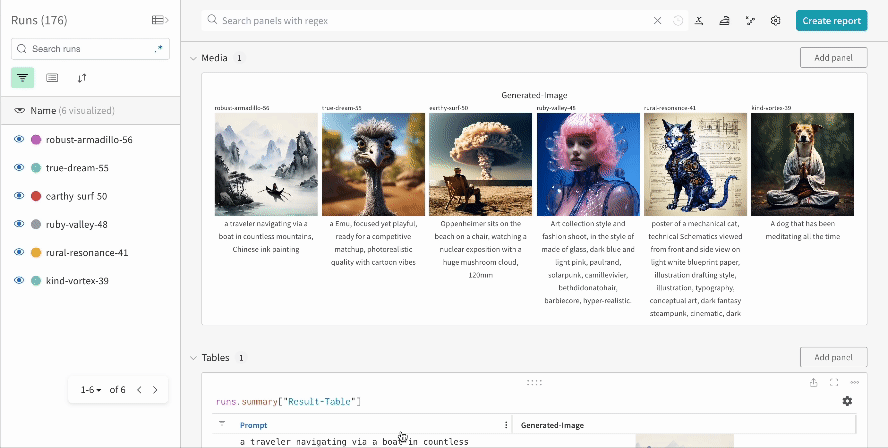

• The results of multiple experiments:

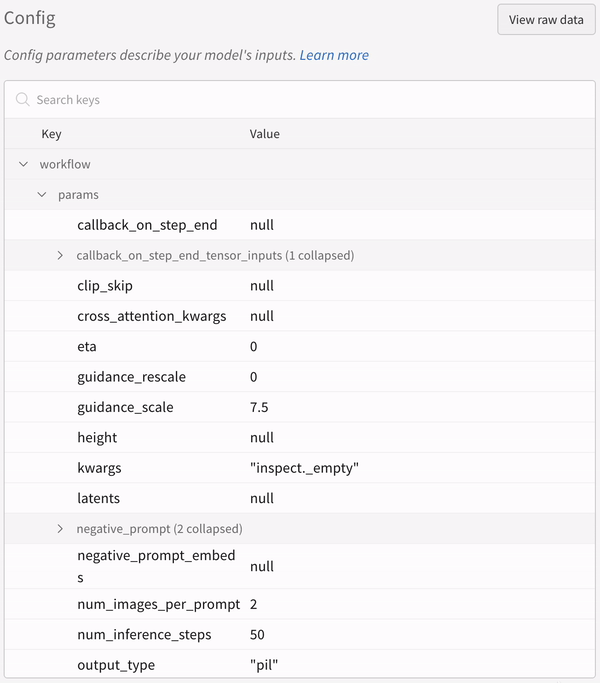

• The config of an experiment:



You must explicitly call wandb.Run.finish() when you run the code in IPython notebook environments after calling the pipeline. This is not necessary when you run Python scripts.

Track multi-pipeline workflows

The following example demonstrates autolog with a typical Stable Diffusion XL + Refiner workflow, in which the refiner refines the latents generated by the StableDiffusionXLPipeline.

Script

import torch
from diffusers import StableDiffusionXLImg2ImgPipeline, StableDiffusionXLPipeline
from wandb.integration.diffusers import autolog

# initialize the SDXL base pipeline
base_pipeline = StableDiffusionXLPipeline.from_pretrained(
    "stabilityai/stable-diffusion-xl-base-1.0",
    torch_dtype=torch.float16,
    variant="fp16",
    use_safetensors=True,
)
base_pipeline.enable_model_cpu_offload()

# initialize the SDXL refiner pipeline
refiner_pipeline = StableDiffusionXLImg2ImgPipeline.from_pretrained(
    "stabilityai/stable-diffusion-xl-refiner-1.0",
    text_encoder_2=base_pipeline.text_encoder_2,
    vae=base_pipeline.vae,
    torch_dtype=torch.float16,
    use_safetensors=True,
    variant="fp16",
)
refiner_pipeline.enable_model_cpu_offload()

prompt = "a photo of an astronaut riding a horse on mars"
negative_prompt = "static, frame, painting, illustration, sd character, low quality, low resolution, greyscale, monochrome, nose, cropped, lowres, jpeg artifacts, deformed iris, deformed pupils, bad eyes, semi-realistic worst quality, bad lips, deformed mouth, deformed face, deformed fingers, deformed toes standing still, posing"

# Make the experiment reproducible by controlling randomness.
# The seed would be automatically logged to WandB.
seed = 42
generator_base = torch.Generator(device="cuda").manual_seed(seed)
generator_refiner = torch.Generator(device="cuda").manual_seed(seed)

# Call WandB Autolog for Diffusers. This would automatically log
# the prompts, generated images, pipeline architecture and all
# associated experiment configs to W&B, thus making your
# image generation experiments easy to reproduce, share and analyze.
autolog(init=dict(project="sdxl"))

# Call the base pipeline to generate the latents
image = base_pipeline(
    prompt=prompt,
    negative_prompt=negative_prompt,
    output_type="latent",
    generator=generator_base,
).images[0]

# Call the refiner pipeline to generate the refined image
image = refiner_pipeline(
    prompt=prompt,
    negative_prompt=negative_prompt,
    image=image[None, :],
    generator=generator_refiner,
).images[0]

Notebook

import torch
from diffusers import StableDiffusionXLImg2ImgPipeline, StableDiffusionXLPipeline

import wandb
from wandb.integration.diffusers import autolog

run = wandb.init()

# initialize the SDXL base pipeline
base_pipeline = StableDiffusionXLPipeline.from_pretrained(
    "stabilityai/stable-diffusion-xl-base-1.0",
    torch_dtype=torch.float16,
    variant="fp16",
    use_safetensors=True,
)
base_pipeline.enable_model_cpu_offload()

# initialize the SDXL refiner pipeline
refiner_pipeline = StableDiffusionXLImg2ImgPipeline.from_pretrained(
    "stabilityai/stable-diffusion-xl-refiner-1.0",
    text_encoder_2=base_pipeline.text_encoder_2,
    vae=base_pipeline.vae,
    torch_dtype=torch.float16,
    use_safetensors=True,
    variant="fp16",
)
refiner_pipeline.enable_model_cpu_offload()

prompt = "a photo of an astronaut riding a horse on mars"
negative_prompt = "static, frame, painting, illustration, sd character, low quality, low resolution, greyscale, monochrome, nose, cropped, lowres, jpeg artifacts, deformed iris, deformed pupils, bad eyes, semi-realistic worst quality, bad lips, deformed mouth, deformed face, deformed fingers, deformed toes standing still, posing"

# Make the experiment reproducible by controlling randomness.
# The seed would be automatically logged to WandB.
seed = 42
generator_base = torch.Generator(device="cuda").manual_seed(seed)
generator_refiner = torch.Generator(device="cuda").manual_seed(seed)

# Call WandB Autolog for Diffusers. This would automatically log
# the prompts, generated images, pipeline architecture and all
# associated experiment configs to W&B, thus making your
# image generation experiments easy to reproduce, share and analyze.
autolog(init=dict(project="sdxl"))

# Call the base pipeline to generate the latents
image = base_pipeline(
    prompt=prompt,
    negative_prompt=negative_prompt,
    output_type="latent",
    generator=generator_base,
).images[0]

# Call the refiner pipeline to generate the refined image
image = refiner_pipeline(
    prompt=prompt,
    negative_prompt=negative_prompt,
    image=image[None, :],
    generator=generator_refiner,
).images[0]

# Finish the experiment
run.finish()

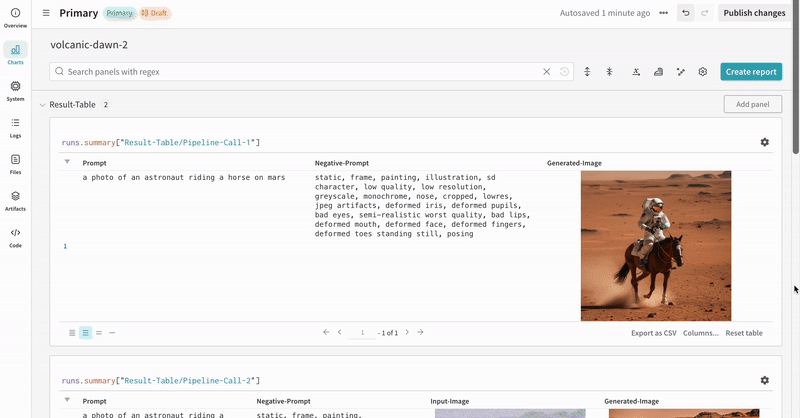

The following image shows an example of a Stable Diffusion XL + Refiner experiment:
